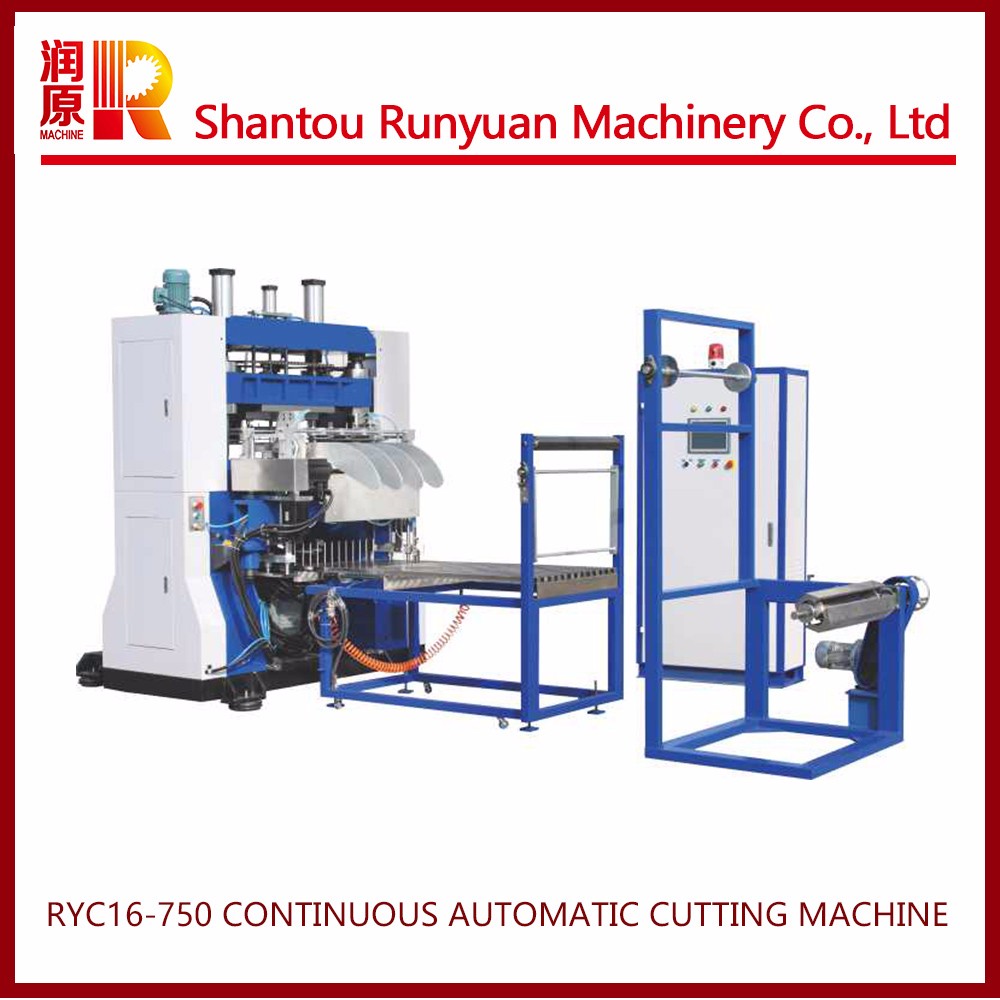

RYC16-750 Continuous Automatic Cutting Machine
RYC16-750连续式自动冲剪机
1、 Main Parameter 机组主要技术参数
Max Cutting Area *冲剪面积 | 680*320mm | 680*220mm |
Max Cutting Force *冲剪力 | 16T | 8T |
Max Cutting Speed *冲剪速度 | 65cycles/min 65模/分钟 | 70cycles/min 70模/分钟 |
Max Product Height 适应制品*高度 | 120mm | 120mm |
Power of Main Motor 主电机功率 | 11kw | 7.5kw |
Cutting Distance 冲切行程 | 150mm | 150mm |
Power supply 使 用 电 源 | 380V/50HZ (三相四线) | 380V/50HZ (三相四线) |
Pressure 使 用 气 压 | 0.2-0.6Mpa | 0.2-0.6Mpa |
Gas Consumption 耗气量 | 200 L/min | 200 L/min |
Overall Dimension 机组外型尺寸 | 1600*2000*2000 | 1600*2000*2000 |
Total Weight 整机重量 | 4000 kg | 4000 kg |
2、Introduction 机组简介
RYC16-750 Continuous Automatic Cutting Machine is a asistant machinery ,which can connect with thermoforming machine. It is suitable for PP, PS, PET, which is especially suitable for box or lid with lower depth, and other heterosexual products. The unit has high efficiency, high stabilityand can realize punching and shearing, stacking and counting into one machine, is a new kind of high automation equipment.
RY16-750连续式自动冲剪机是与我厂热成型机组对接的一种新型成型周边设备；可适用PP、PS、PET、PLA制品的冲剪。特别适用于深度较浅的方盒、盖子等异性制品。同时，机组具有高效率、高稳定性；该机可实现冲剪、堆叠、计数于一体，是一种新型高自动化设备。
3、 Machine characteristic机组特点
A. The cutting mechanism using slider-crank mechanism, mechanical moving at a high speed. The guide post include guide pins, which materials is quenched and tempered 45 # steel, hard chrome plating, good rigidity and accurate performance, wear resistance, helpful for increase the service life of the die cutter, die opening and closing machine adopts high precision ball guide pin, clamping precision is high.
冲切机构采用曲柄滑块机构，机械式高速连动。模台导向采用4导柱结构，导柱材料45#钢调质，外镀硬铬，刚性好，导正性能精确，耐磨损，有助于模具剪口使用寿命，模台开合采用高精度滚珠导柱套副,合模精度高。
B. The streching structure adopt servo motor control up and down, high control precision, and quick response.
拉伸结构采用伺服电机控制升降，控制精度高，启停响应迅速。
C. Feeding adopt servo motor driving, high control precision, and quick response. Feeding setting set two stages to send piece length, to solve different production layout and product center to send piece of distance.
送片采用伺服电机传动，控制精度高，启停响应迅速。送片设置两段式送片长度，解决成型版面与制品中心不同送片距离。
D. Feeding and extruding use servo motor control up and down; Reduce the sheet transfer resistance, auxiliary mould cutting position. Maximum travel stoke is 120 mm.
入片端、出片端采用伺服电机控制升降；减少片材输送阻力，辅助模具冲切定位。*升降行程可达120mm。
E. The unit closed height is adjustable and can be adapted to different closed the height of the mould, the largest stroke is 30 mm.
机组封闭高度可调,可适应不同封闭高度的模具,*调节行程30mm.
F. Low center gravity design, low cup blowing height, stable operation, accord with human stand and the best height operation.
低重心设计，出杯高度低，运行平稳，符合人体站立操作及观察*高度。
G. The entire device control using sanhe/SMC pneumatic components, reliable operation, long service life.
整个设备的气路控制采用三和/SMC元件，动作可靠，使寿命长。
H. The unit is equipped with automatic oil supply system, fuel supply time from PLC in each set.
整个设备的气路控制采用三和/SMC元件，动作可靠，使寿命长。机组配备自动供油系统，可从PLC设定各转动点的供油时间
