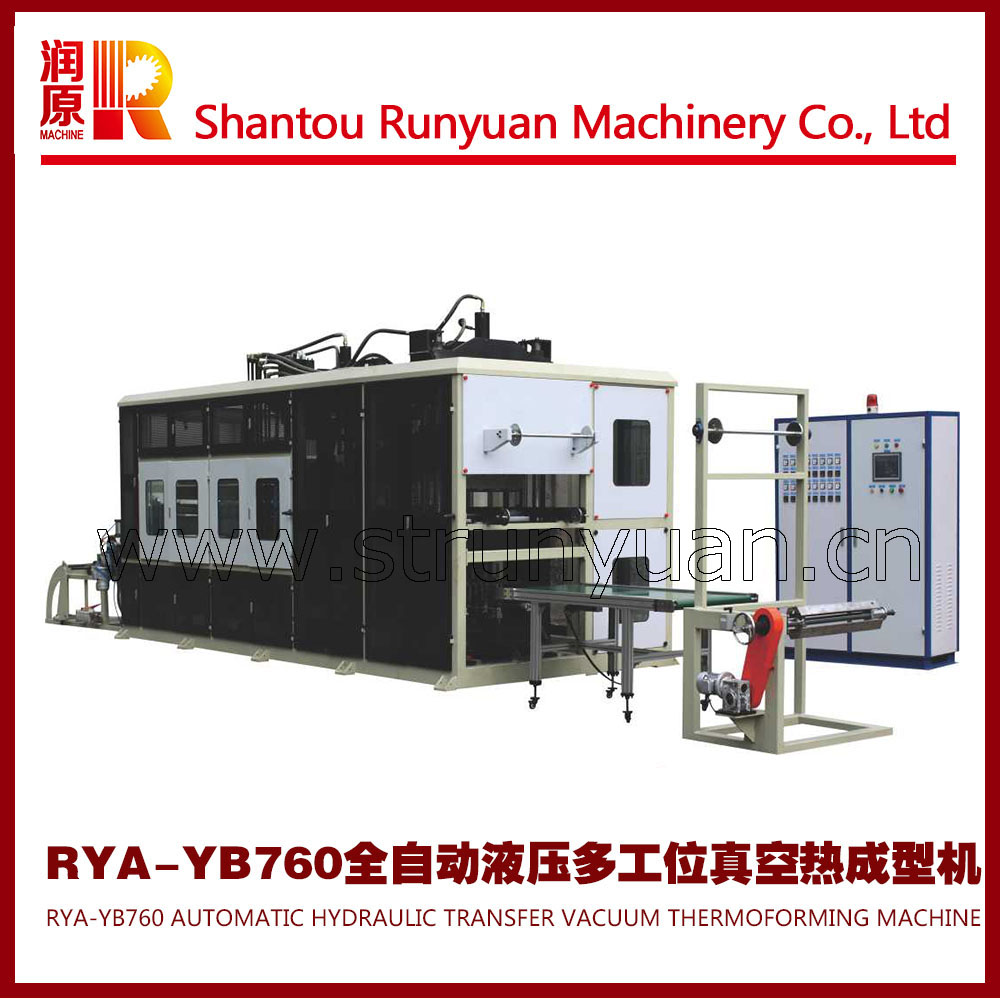

Automatic Multi-stage Hydraulic Thermoforming Machine
全自动液压多工位热成型机
Structural characteristics: 功能与特点
*Machine includes four working positions: forming, punching, cutting and stacking.
*本机分为成型，冲孔，冲剪，堆叠四个工位。
*Hydraulic system has been used to control the forming position, punching position and the cutting position.
*成型工位，冲孔工位，冲剪工位采用全液压系统控制。
*Upper and down mould can be pressure or vacuum forming. So this machine can make by pressure forming or by vacuum forming; and can be pressure and vacuum forming together to make a good & precision product.
*上下模台配备正负压气源，可适用产品正负压成型。
*Machine controlled by PLC system.
*整机采用PLC集成控制。
Parameter:参数
型号 Model | RYA-YB760/600 | RYA-YB760/520 |
适用材料 Suitable Material | PS, PET, PP | PS, PET, PP |
主电机功率 Main Motor Power | 40KW | 30KW |
适用片材厚度 Sheet Thickness | 0.3-1.2mm | 0.3-1.2mm |
成型深度 Formed Depth | 120mm | 120mm |
工作效率 Cycle per minute | 20-30次/分钟 20-30times/min | 20-30次/分钟 20-30times/min |
*成型面积 Max Formed Area | 760×600mm | 760×520mm |
片材宽度 Sheet Width | 600-800mm | 600-800mm |
加热功率 Heating Power | 145KW | 120KW |
整机重量 Total Weight | 23T | 15T |

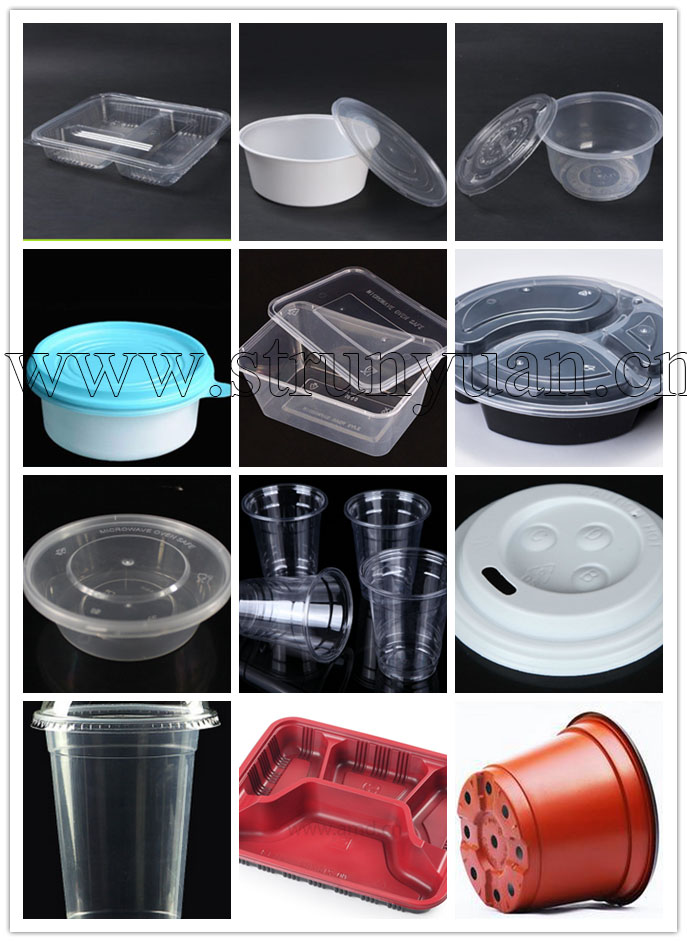

Samples Picture:样品图片

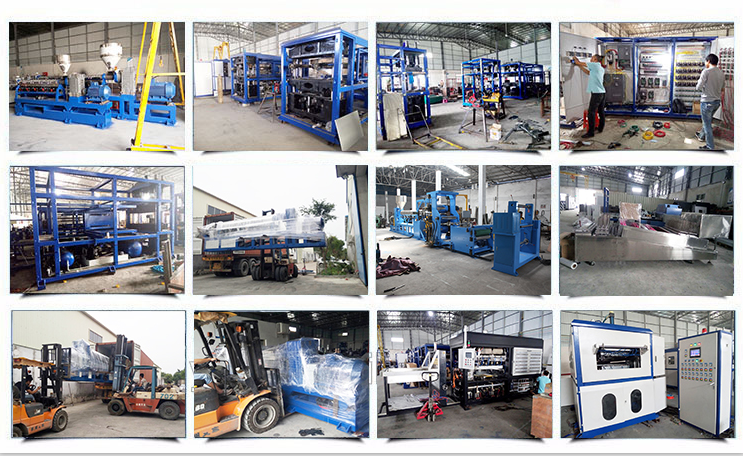

Factory Workshop Picture:工厂车间图片
