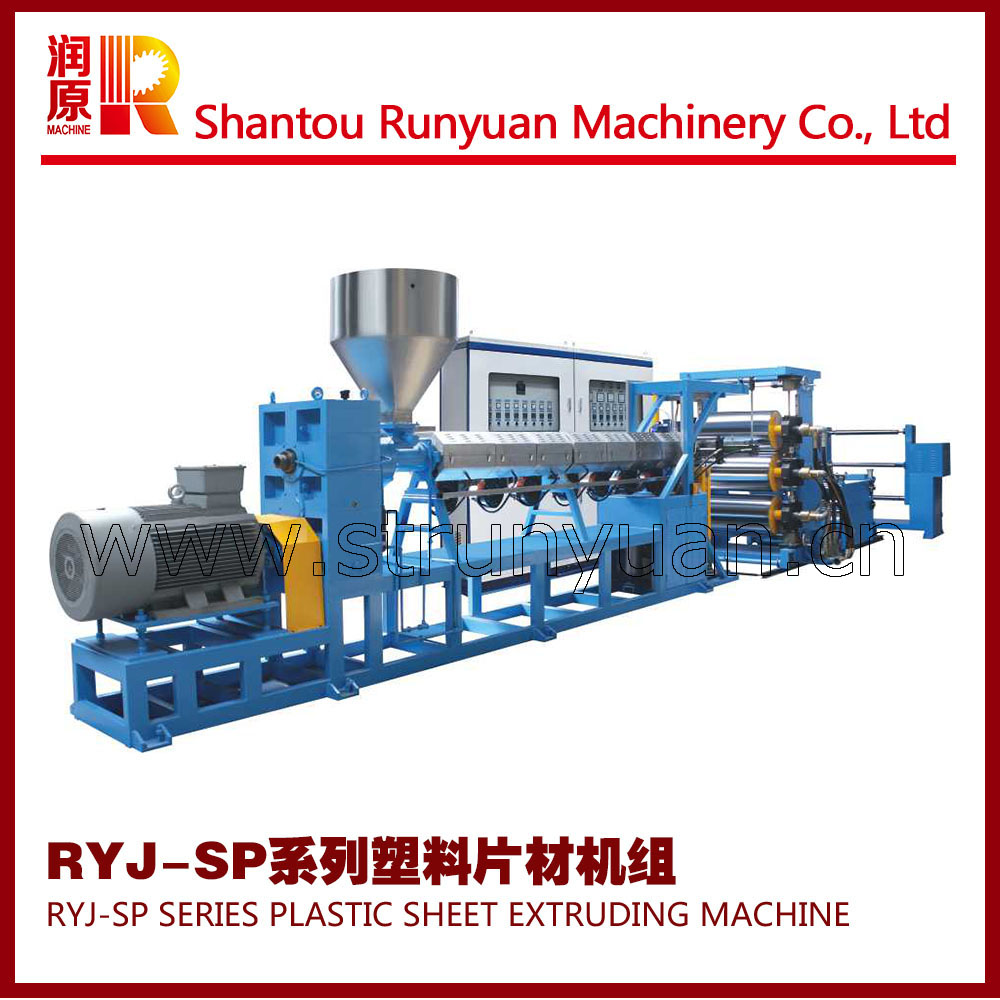

RYJ-SP Series Plastic Sheet Extruding Machine
RYJ-SP系列塑料片材挤出机
Parameter: 参数：
MODEL 型号 | RYJ-SP-900-105 | RYJ-SP-900-110 | RYJ-SP-900-120 |
Roller Length 辊筒长度 | 420*900mm | 420*900mm | |
Sheet Width 片材宽度 | ≤750mm | ≤750mm | ≤750mm |
Sheet Thickness 片材厚度 | 0.3-2.0mm | 0.3-2.0mm | 0.3-2.0mm |
Screw Diameter 螺杆直径 | 105mm | 110mm | 120mm |
Screw Length-Diameter Ratio 螺杆长度-直径比 | 1:33 | 1:34 | 1:35 |
Total Power 总功率 | 110kw | 120kw | 145kw |
Heating Power 加热功率 | 45kw | 60kw | 70kw |
Max. Output *输出 | 220kg/h | 250kg/h | 350kg/h |
Dimension 尺寸 | 12.5×1.8×2 (m) | 13×1.8×2 (m) | |
Total Weight 总重量 | 8T | 9T | 10T |
Structural characteristics 结构特性
●RYJ-SP Series Plastic Sheet Extruding Machine is developed by the market demand. It is mainly applied to produce PP, PE, PS, HIPS sheet etc.
RYJ-SP系列塑料片材挤出机是根据市场需求研制的，主要用于生产PP、PE、PS、HIPS等片材
●The screw of the extruding machine uses big ratio of length and diameter. It has good forming effect, even sheet thickness and same running speed.
挤出机的螺杆采用大长径比，成形效果好，片材厚度均匀，运行速度一致
●This machine includes screw extruder, 3-roller calandar, traction rewinder.
本机包括螺杆挤出机、三辊压延机、牵引复卷机
●Three rollers controlled by three motors separately.
三个辊筒分别由三个电机控制
●Bright surface of the pressing roller and even temperature of its surface to make sure that the sheet is clean and the thickness is equal.
压辊表面光亮，表面温度均匀，确保压片清洁，厚度均匀

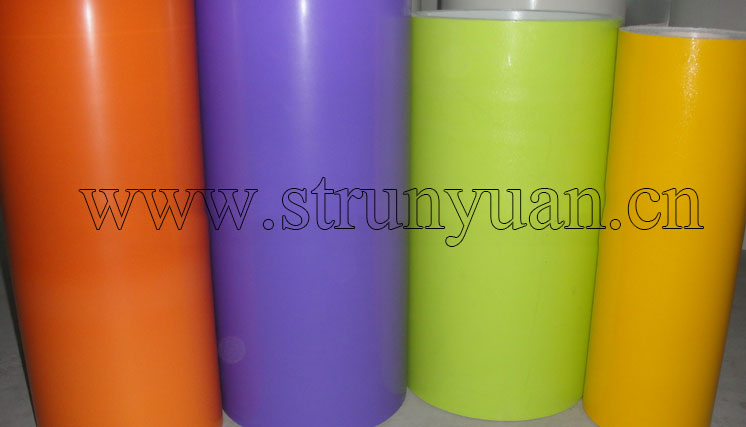

Samples Picture 样品图片

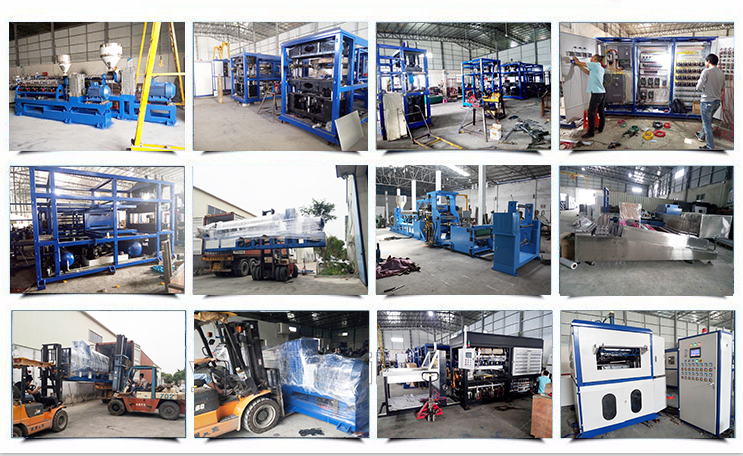

Factory Workshop Picture 工厂车间图片

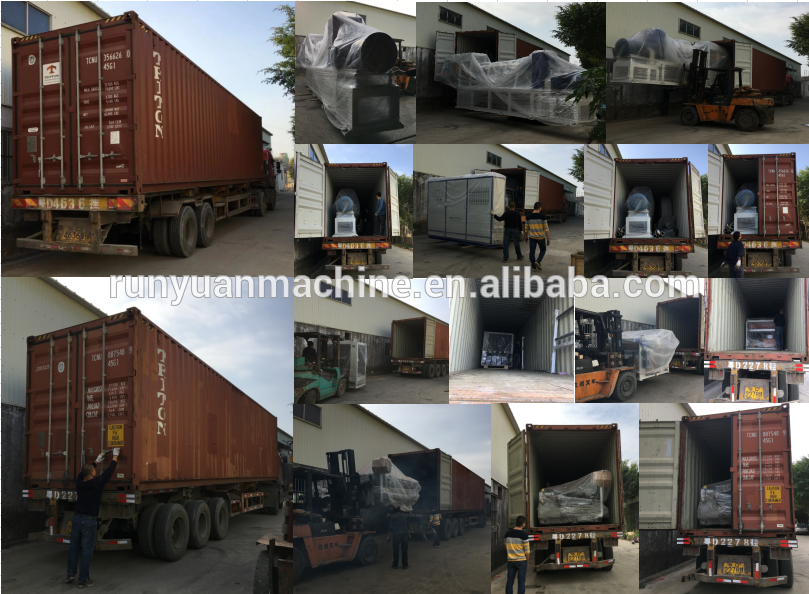

Loading Container Picture 装柜图片
