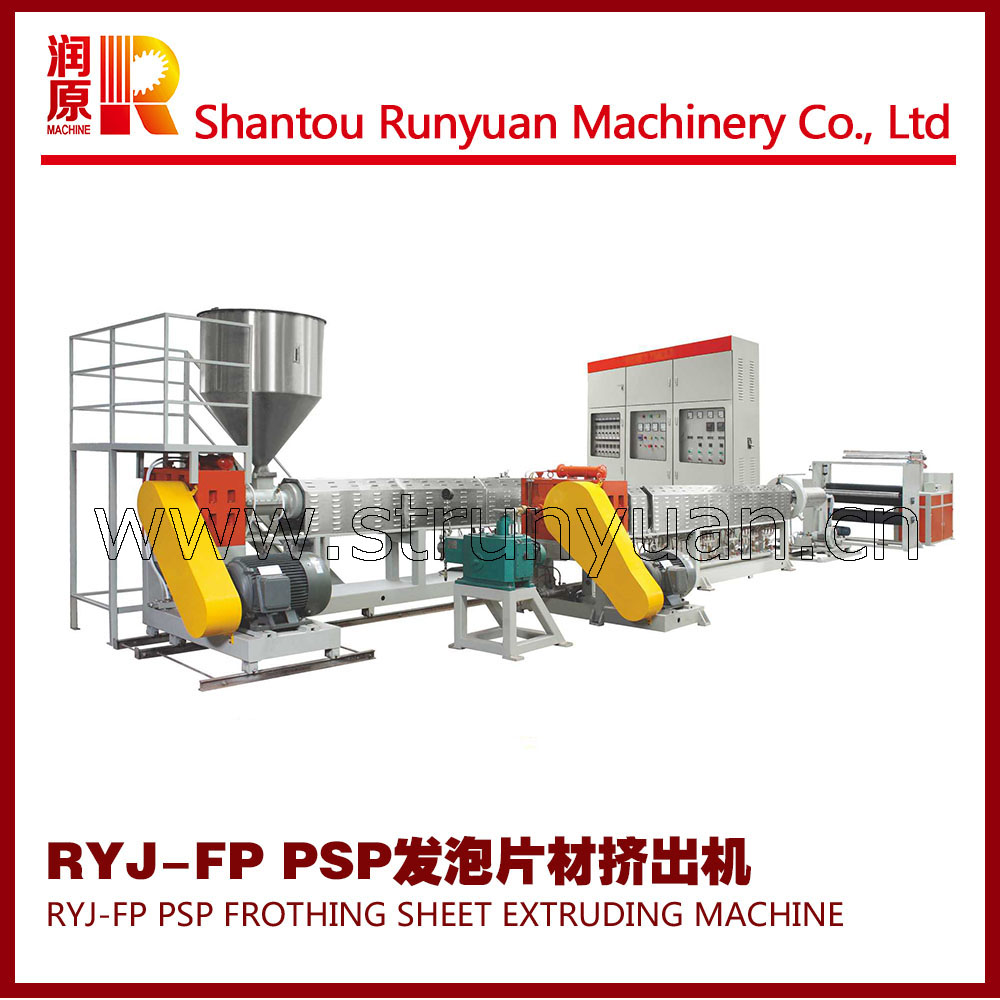

Machine Picture: 机器图片：
Structural characteristics: 结构特性：
RYJ-FP110/130 PSP Frothing Sheet Extrusion Machine unit is the equipment that applies the most popular double stage series of frothing sheet production.
RYJ-FP110/130型PSP发泡片材挤出机是应用*的双级发泡片材系列生产的设备。
This equipment applies common-type polystyrene as material and immits high-pressure foaming agent. After extruding by the die, frothing, cooling, forming, and driving, it can rewind as PSP finished sheet products.
本设备采用共型聚苯乙烯为原料，注入高压发泡剂，经模具挤压、起泡、冷却、成型、驱动后，可作为PSPPSP成品卷取。
This sheet material can be produced to different kinds of packaging containers after vacuum plastified forming; One-off Snack Box, Aquatic Tray, Supermarket Tray, Cake Tray, KT plate, Instant-Noodle Bowl, etc, which can be widely used in the packaging of food, fruit, advertisement brochures and industrial products.
本片材经真空塑化成型后可制成各种包装容器; 一次性小吃盒、水产托盘、超市托盘、蛋糕托盘、KT盘、方便面碗等，可广泛应用于食品、水果、宣传册和工业产品的包装。
This machine features in advanced structure, stable performance, simple operation and high automation, etc.
该机具有结构先进、性能稳定、操作简单、自动化程度高等特点。
Parameter: 参数：
Model 型号 | RYJ-FP 110/130 PSP | RYJ-FP 130/150 PSP |
Rated Power 额定功率 | 230kw | 250kw |
Capacity 生产力 | 300kg/hour | 450kg/hour |
Screw Size 螺杆尺寸 | Φ110 Φ130 | Φ130 Φ150 |
Cooling Way 冷却方法 | Wind Cooling; Water Cooling 风冷，水冷 | Wind Cooling; Water Cooling 风冷，水冷 |
Butane Pressure 丁烷压力 | 1.5Mpa | 1.5Mpa |
Sheet Width 片材宽度 | 650-1200mm | 650-1200mm |
Sheet Thickness 片材厚度 | 1.5-4mm | 1.5-4mm |
Dimension(mm) 尺寸 | 5500×1750×1600 7000×1750×1600 | 5500×1750×1600 7000×1750×1600 |
Weight 重量 | 20T | 24T |

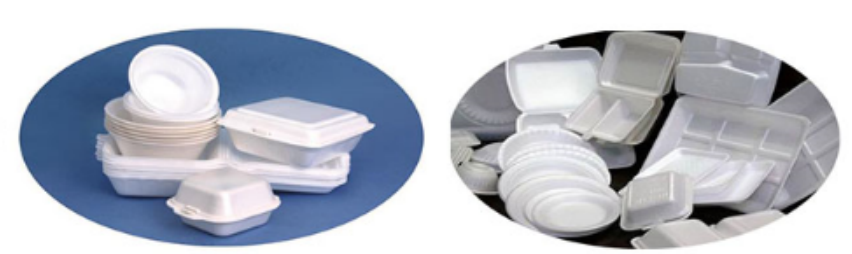

Sample Picture: 样品图片：

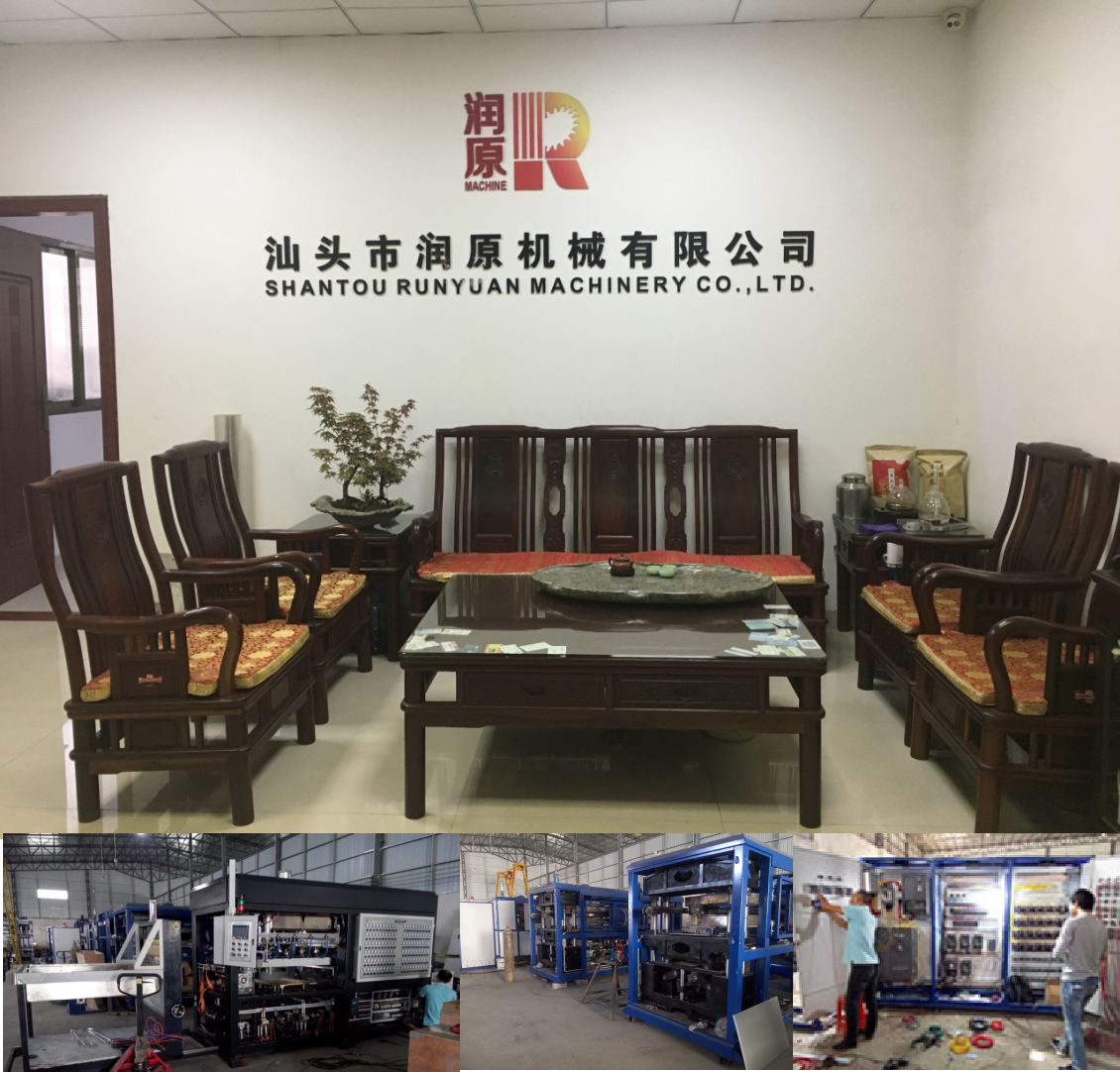

Factory Picture: 工厂图片：
Contact Way: 联系方式：
