RYJ-SP Series Plastic Sheet Extruding Machine
RYJ-SP系列塑料多层片材挤出机

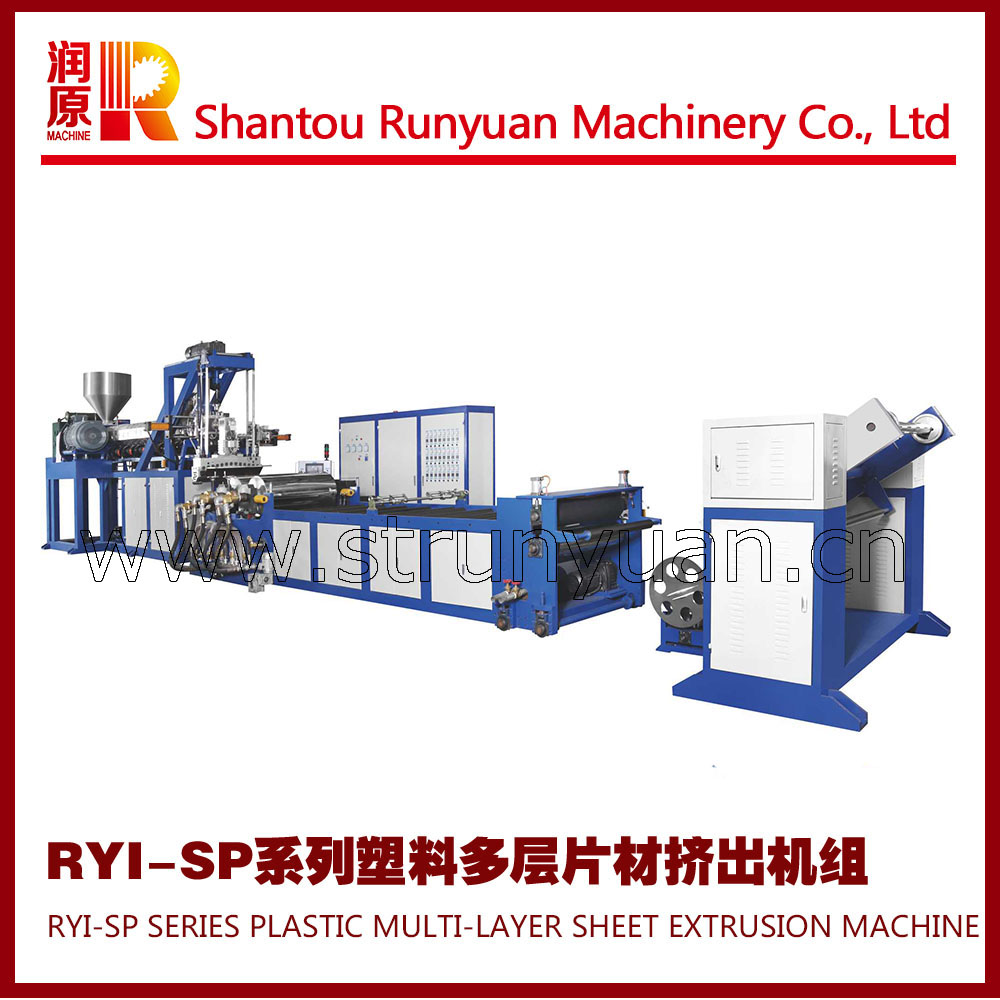

Machine Picture 机器图片
Structural characteristics 结构特性
●RYJ-SP Series Plastic Sheet Extruding Machine is developed by the market demand.
It is mainly applied to produce PP, PE, PS, HIPS sheet etc.
RYJ-SP系列塑料片材挤出机是根据市场需求研制的，主要用于生产PP、PE、PS、HIPS等片材
●The screw of the extruding machine uses big ratio of length and diameter. It has good forming effect, even sheet thickness and same running speed.
挤出机的螺杆采用大长径比，成形效果好，片材厚度均匀，运行速度一致
●This machine includes screw extruder, 3-roller calandar, traction rewinder.
本机包括螺杆挤出机、三辊压延机、牵引复卷机
●Three rollers controlled by three motors separately.
三个辊筒分别由三个电机控制
●Bright surface of the pressing roller and even temperature of its surface to make sure that the sheet is clean and the thickness is equal.
压辊表面光亮，表面温度均匀，确保压片清洁，厚度均匀
Parameter 参数
MODEL 型号 | RYJ-SP-900-105 | RYJ-SP-900-110 | RYJ-SP-900-120 |
Roller Length 辊筒长度 | 420*900mm | 420*900mm | |
Sheet Width 片材宽度 | ≤750mm | ≤750mm | ≤750mm |
Sheet Thickness 片材厚度 | 0.3-2.0mm | 0.3-2.0mm | 0.3-2.0mm |
Screw Diameter 螺杆直径 | 105mm | 110mm | 120mm |
Screw Length-Diameter Ratio 螺杆长度-直径比 | 1:33 | 1:34 | 1:35 |
Total Power 总功率 | 110kw | 120kw | 145kw |
Heating Power 加热功率 | 45kw | 60kw | 70kw |
Max. Output *输出 | 220kg/h | 250kg/h | 350kg/h |
Dimension 尺寸 | 12.5×1.8×2 (m) | 13×1.8×2 (m) | |
Total Weight 总重量 | 8T | 9T | 10T |

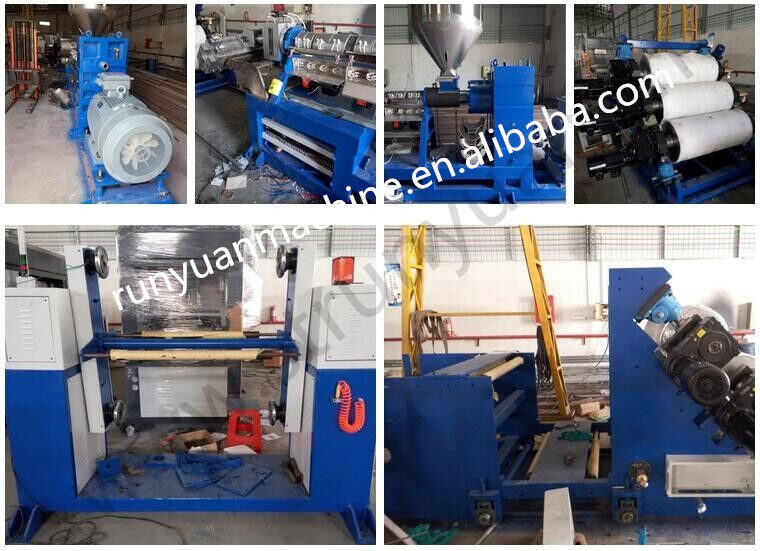

Machine Produce Picture 机器生产图片

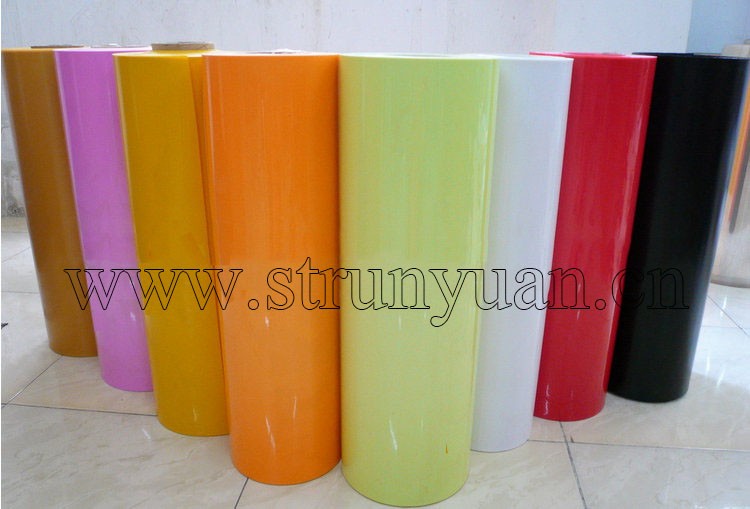

Sheet Sample Picture 片材样品图片

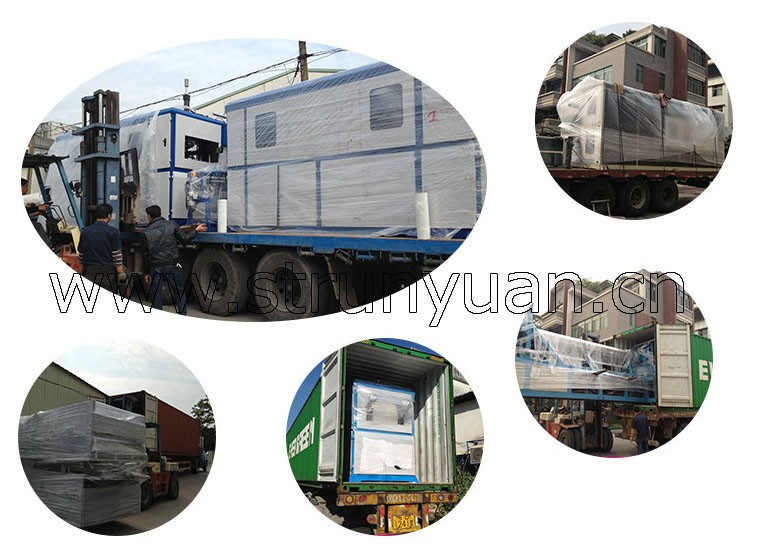

Factory Loading Container 工厂装柜
