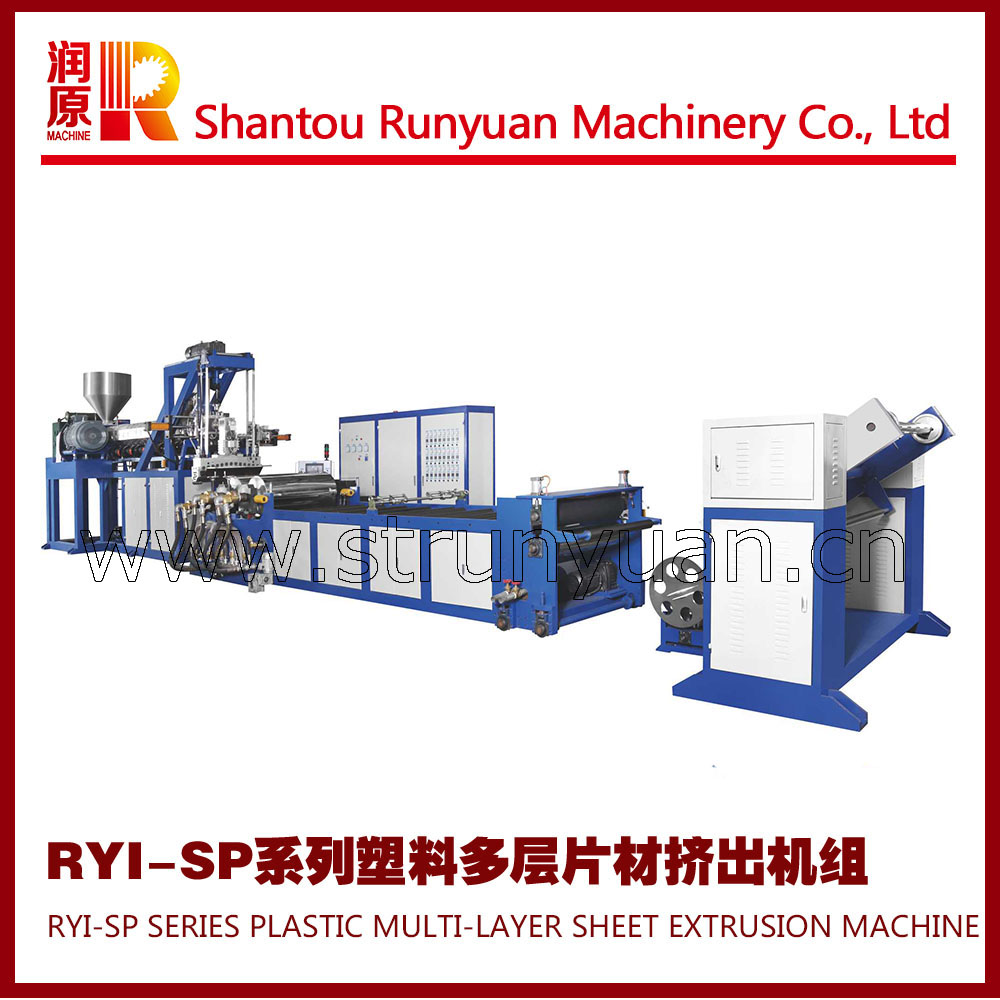

RYI-SP-900-120-90 Series Plastic Multi-Layer Sheet Extruding Machine
RYI-SP-900-120-90系列塑料多层共挤出片材机组
Structural characteristics 产品特性：
RYI-SP Series Plastic Sheet Extruding Machine is developed by the market demand. It is mainly applied to produce PP, PS, PE, HIPS sheet and etc.
·RYJ-SP系列塑料片材机组是我公司针对市场需求精心设计制造的，它主要适用于生产PP, PS, PE, HIPS等塑料片材。
The screw of the extruding machine uses big ratio of length and diameter. It has good forming effect, even sheet thickness and same running speed.
·挤出机螺杆采用*长径比，具有塑化效果好，膜片厚薄均匀，流速一致等优点。
Bright surface of the pressing roller and even temperature of its surface to make sure that the sheet is clean and the thickness is equal.
·镜面压光辊，辊筒表层温度均匀，使生产的片材光洁明亮，厚薄均匀。
This machine includes screw extruder, 3-roller calendar, traction rewinder.
·本套机组由挤出机、三辊压延机、牵引收卷机组成。
Parameter 参数:
MODEL 型号 | |
Material 适用材料 | PP/PS/HIPS |
Roller Length 辊筒长度 | 500*900mm |
Sheet Width 片材宽度 | ≤800mm |
Sheet Thickness 片材厚度 | |
Screw Diameter 螺杆直径 | |
Screw Length-Diameter Ratio 螺杆长径比 | 34/30/30 |
Total Power 总功率 | 210KW |
Heating Power 加热功率 | 70KW |
Maximum Output *产量 | 400kg/h |
Dimension 机器尺寸 | |
Three rollers controlled by three motors separately. 三辊由独立电机控制 | |
Samples Picture 样品图片:

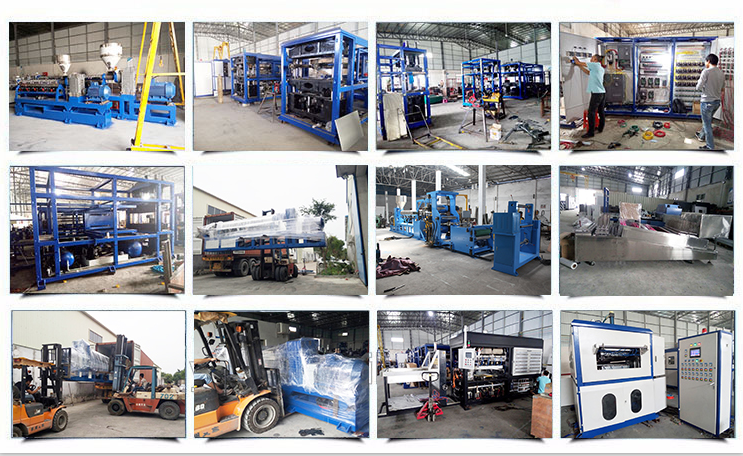

Factory Picture 工厂图片:
