RYC-680/1200 Type Fully-Automatic High-Speed Vacuum Plastifying Molding Machine

RYC-680/1200 全自动高速真空成型机

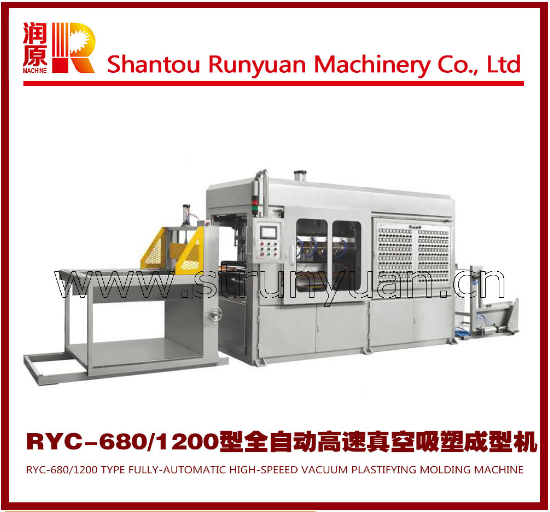

Machine Picture 机器图片

Structural characteristics: 结构特性

This machine is suitable for PVC, PE, PET, HIPS, PP and other plastic sheet. It can produce different shapes containers.

本机适用于PVC, PE, PET, HIPS, PP 等塑料板材。它可以产生不同形状的容器

The machine is combined with pneumatic, mechanical and drive to achieve automatic continuous working of feeding sheet, forming, demoulding, ection cutting and stacking. Using PLC control system makes the machine working more reliable.

本机与气动、机械、传动相结合，实现送片材、成型、脱模、切料、堆垛等自动连续工作。采用PLC控制系统，使机器工作更可靠

Dual-chain feeding device with photocell control is used to achieve stable and reliable feeding. The width and length of feeding can be stepless adjusted accurately, suitable for the arrangement of different mould, with high use-factor of the sheet.

采用光电管控制的双链进给装置，实现稳定可靠的进片。送料宽度和长度可无级精确调整，适合不同模具的布置，板料利用率高

The function of two-step vacuum, it also has the functions of secondary upper die, demouding by vibration, and delaying vacuum, forming is suitable for making the products of large depth. The machine can be forming by negative mould or positive mould, convenient and fast for replacing the mould.Equipped heating system with upper and lower heaters of hollow far – infrared heating pieces for two – section heating

具有两级真空功能，还具有二次上模、振动脱模、延时真空等功能，适用于制造深度大的产品。本机可采用负模或正模成型，更换模具方便快捷。采用中空远红外加热片上下加热器进行两段加热的加热系统

Divisional temperature control system makes heating process economical, even and easy adjusting.

分区控温系统，加热过程经济、均匀、调节方便

With wind cooling and water fog system, so as to work continuously without water cooling inside mould, especially suitable for production by non-metal mould.具有风冷、水雾系统，模具内部无水冷连续工作，特别适合非金属模具生产

Equipped with dual – shaft material loosing device, section-cutting and stacking unit, to improve production efficiency

配有双轴物料松脱装置，分段切割堆垛装置，提高生产效率

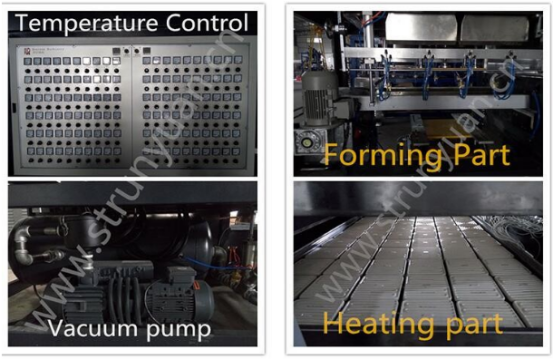

Machine Details Picture 机器细节图片

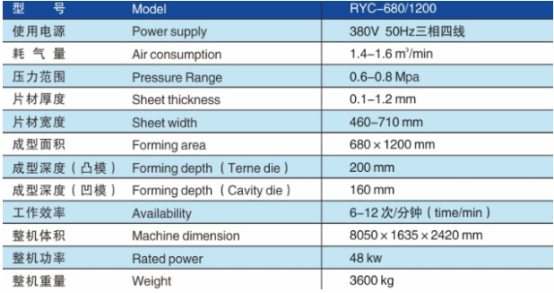

Machine Parameter: 机器参数

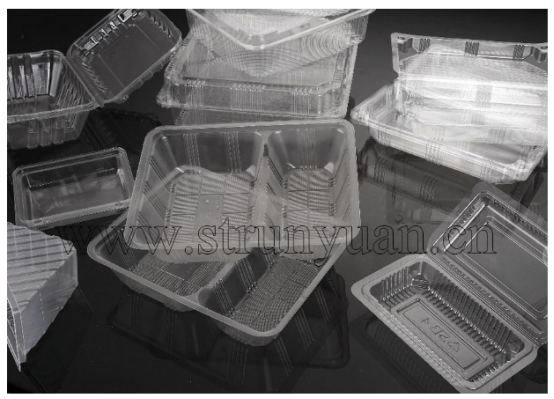

Machine Produce Sample Picture 机器生产样品图片

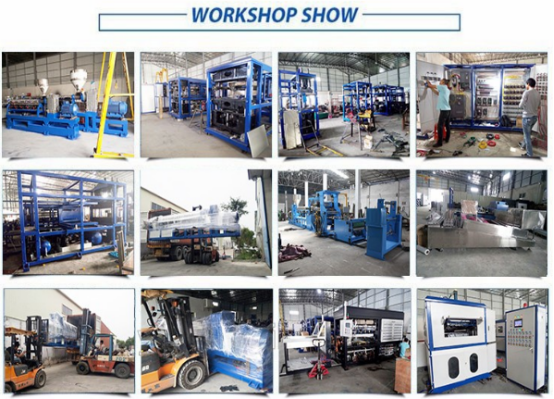

Factory & Workshop 工厂&车间
