RYJ-FP110/130 PSP Frothing Sheet Extrusion Machine:
RYJ-FP110/130 发泡片材挤出机
Structural characteristics: 结构特性
RYJ-FP110/130 PSP Frothing Sheet Extrusion Machine unit is the equipment that applies the most popular double stage series of frothing sheet production. This equipment applies common-type polystyrene as material and immits high-pressure foaming agent. After extruding by the die, frothing, cooling, forming, and driving, it can rewind as PSP finished sheet products. This sheet material can be produced to different kinds of packaging containers after vacuum plastified forming; One-off Snack Box, Aquatic Tray, Supermarket Tray, Cake Tray, KT plate, Instant-Noodle Bowl, etc, which can be widely used in the packaging of food, fruit, advertisement brochures and industrial products. This machine features in advanced structure, stable performance, simple operation and high automation, etc.
RYJ-FP110/130型PSP发泡片材挤出机是应用*的双级发泡片材系列生产的设备
本设备采用共型聚苯乙烯为原料，注入高压发泡剂，经模具挤压、起泡、冷却、成型、驱动后，可作为PSPPSP成品卷取。本片材经真空塑化成型后可制成各种包装容器; 一次性小吃盒、水产托盘、超市托盘、蛋糕托盘、KT盘、方便面碗等，可广泛应用于食品、水果、宣传册和工业产品的包装。该机具有结构先进、性能稳定、操作简单、自动化程度高等特点

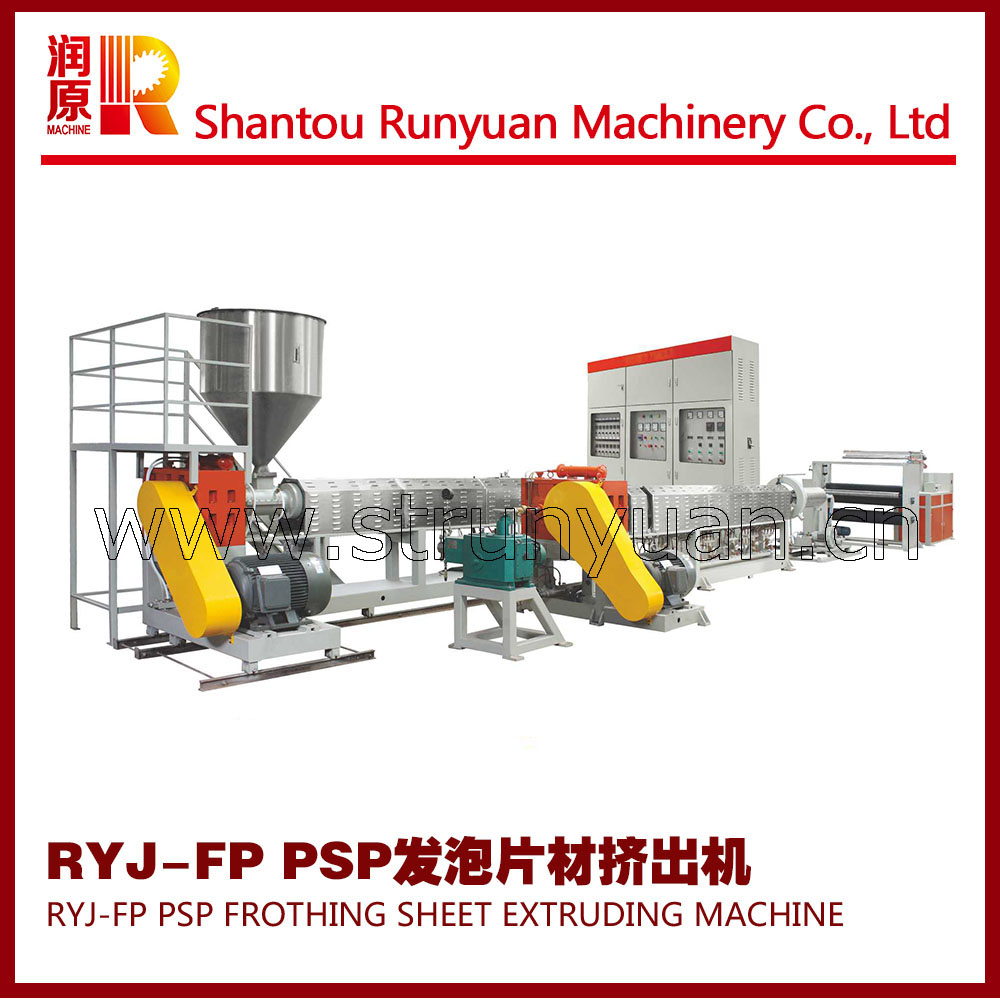

Machine Picture:机器图片
Parameter: 参数
Model 型号 | RYJ-FP 110/130 PSP | RYJ-FP 130/150 PSP |
Rated Power 额定功率 | 230kw | 250kw |
Capacity 生产力 | 300kg/hour | 450kg/hour |
Screw Size 螺杆尺寸 | Φ110 Φ130 | Φ130 Φ150 |
Cooling Way 冷却方法 | Wind Cooling; Water Cooling 风冷，水冷 | Wind Cooling; Water Cooling 风冷，水冷 |
Butane Pressure 丁烷压力 | 1.5Mpa | 1.5Mpa |
Sheet Width 片材宽度 | 650-1200mm | 650-1200mm |
Sheet Thickness 片材厚度 | 1.5-4mm | 1.5-4mm |
Dimension(mm) 尺寸 | 5500×1750×1600 7000×1750×1600 | 5500×1750×1600 7000×1750×1600 |
Weight 重量 | 20T | 24T |
Products Sample: 样品图片

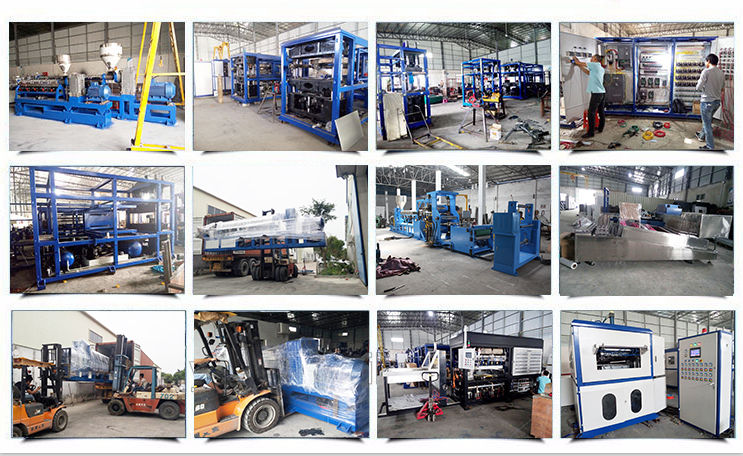

Workshop Show: 车间展示

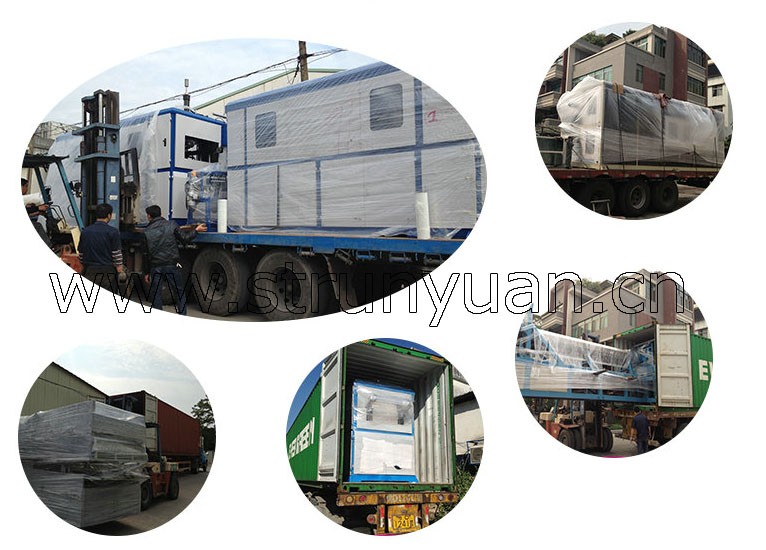

Loading Container Picture：装柜图片

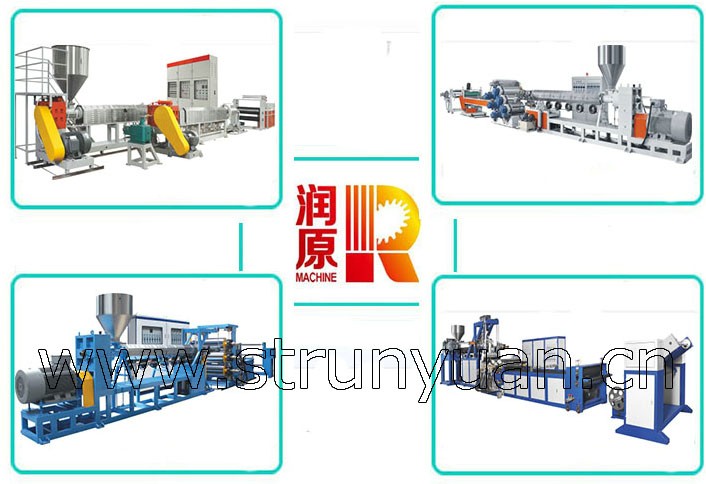

Sheet Extruder Machine Series: 片材挤出机系列
Contact Information：联系方式
